EEG Neurofeedback Platform

  • Advanced Biosignal Analysis:  A Nordic-engineered software platform built for real-time analysis of biosignals, designed for flexible hardware integration.

  • Scientifically Grounded: The platform is built upon evidence-based methodologies in neurofeedback and brain self-regulation (Sitaram et al., 2017).

  • Clinical Bridge: Engineered to connect academic research with the Nordic MedTech market.

Scientific Research

Multiple EEG neurofeedback protocols demonstrate an evidence-based, positive effect on 50–80% of clients' self-regulation of brain activity, emotions, and behavior (Sitaram et al., 2017, Rogala et al., 2016, Othmer & Othmer, 2016).

Sham-controlled research shows that positive clinical changes occur exclusively when clients receive feedback based on their own real-time EEG data. The effects dissipate when the feedback is based on another client's EEG measurements or computer-generated random data (Leong et al., 2018, Arina et al., 2022, Adhia et al., 2023).

Pain Management


Infra-Low Frequency (ILF) neurofeedback reduces tension-type headache attacks

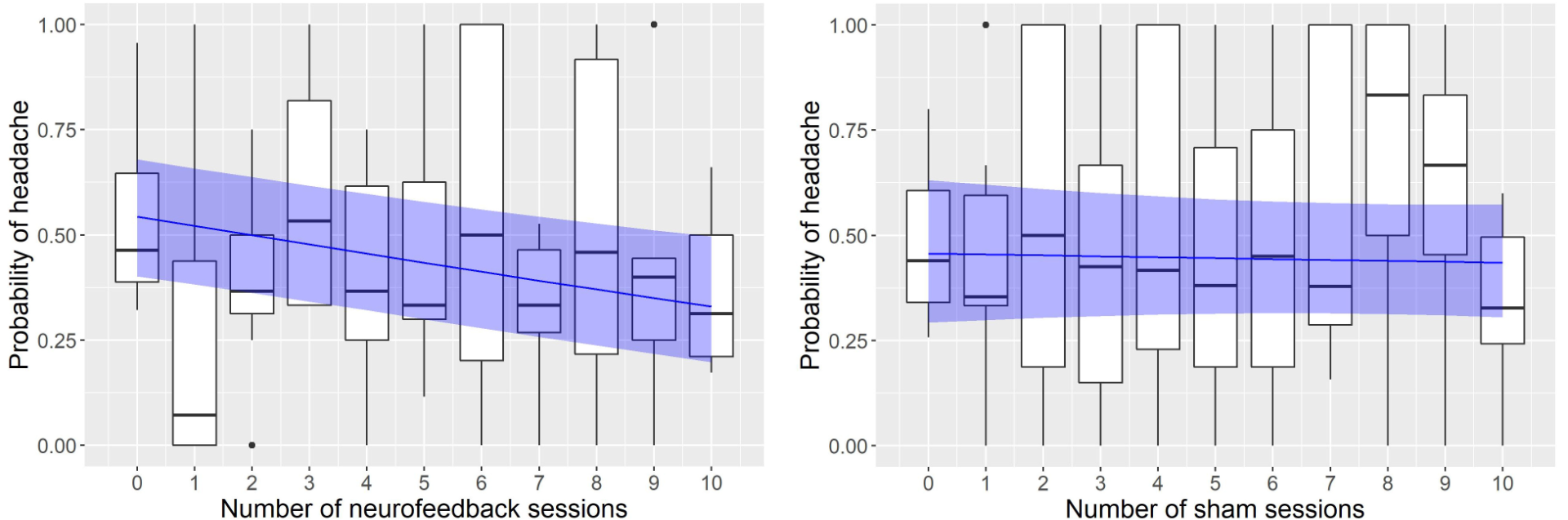

Arina and colleagues (2022) published research findings from clients suffering from tension-type headaches (see Figure 1). After receiving Infra-Low Frequency (ILF) neurofeedback, clients experienced a significant reduction in headache attacks.

Conversely, no clinical improvement was observed when clients believed they were receiving neurofeedback based on their own EEG data, but the feedback was actually derived from computer-generated random data.

Infraslow Frequency (ISF) neurofeedback can reduce chronic low back pain

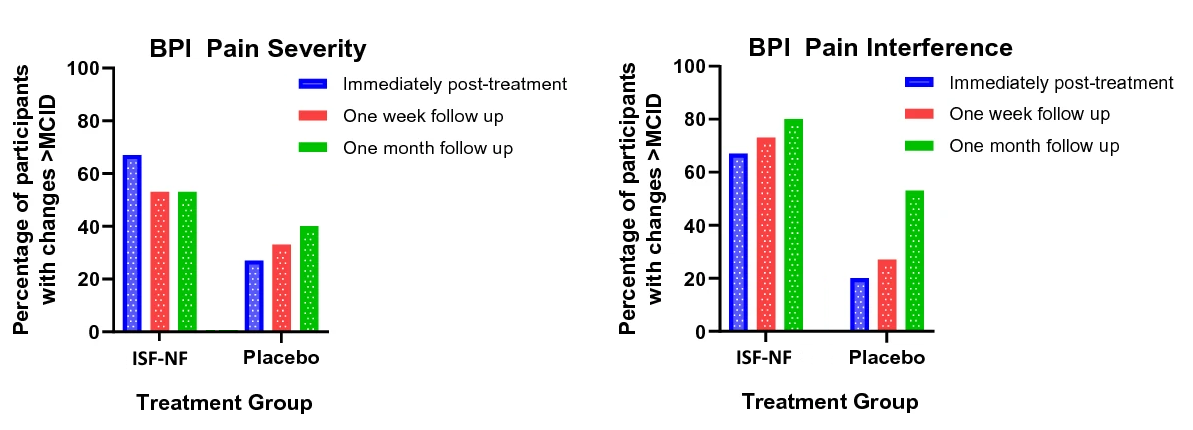

Adhia and colleagues (2023) published trial results from clients with chronic low back pain (displayed in Figure 2). Following Infraslow Frequency (ISF) neurofeedback training, over half of the clients reported a minimum 30% reduction in perceived pain intensity, noting that the pain was significantly less disruptive to daily activities.Only a minor fraction of clients experienced improvement when they believed they received neurofeedback based on their own EEG data, while the feedback was actually generated from other trial participants' EEG measurements.

Addiction

Promising outcomes using Infraslow Frequency (ISF) neurofeedback for food addiction

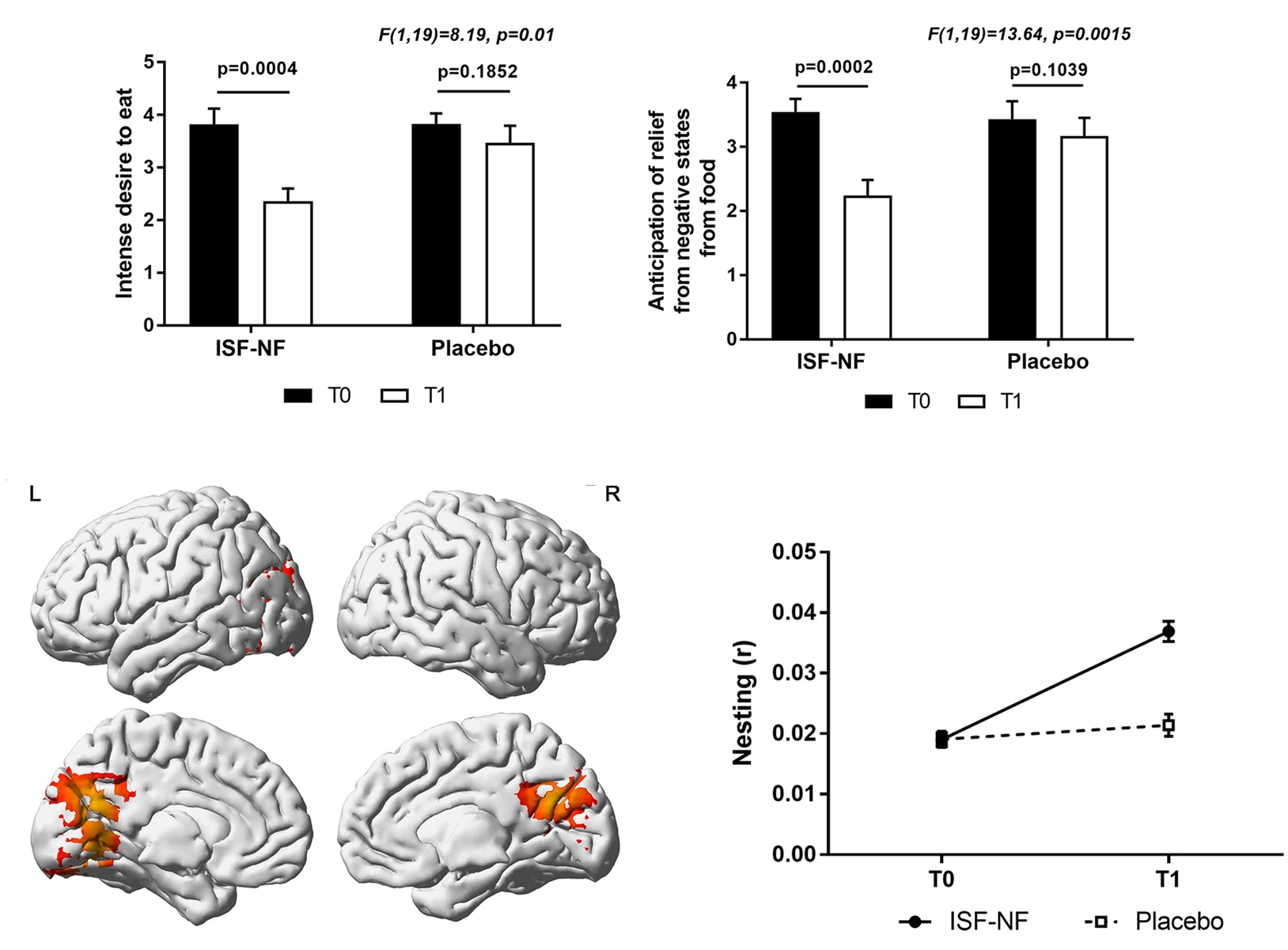

Infraslow Frequency (ISF) neurofeedback has shown promising results in treating food addiction. Leong et al.  (2018) published research findings (displayed in Figure 3) demonstrating that clients with food addiction experienced less intense food cravings and a reduced expectation that food was necessary to alleviate negative emotions.

Furthermore, the ISF neurofeedback training modified the clients' underlying neural activity. An increased synchronization emerged between infraslow frequency (ISF) waves and the electrical voltage fluctuations of rapid beta waves within the posterior cingulate cortex. The researchers suggest this shift in brain activity may correlate with enhanced positive body awareness.

When clients believed they were receiving neurofeedback based on their own EEG data, while the feedback was actually driven by computer-generated random data, the beneficial effects disappeared.

The WEAL EEG Neurofeedback Platform

  • The platform is designed to seamlessly integrate advanced analytical methods and feedback paradigms directly from clinical research.
  • The following methods are scheduled for upcoming development:
  • Slow Cortical Potentials & Evoked Responses: Targeted for trigger-based exposure exercises, requiring highly precise time-synchronization between external stimuli and EEG streams.
  • AI-Assisted Optimization: Development of automated algorithms to optimize individualized EEG training parameters.

Hardware Integration & Real-Time Signal Processing

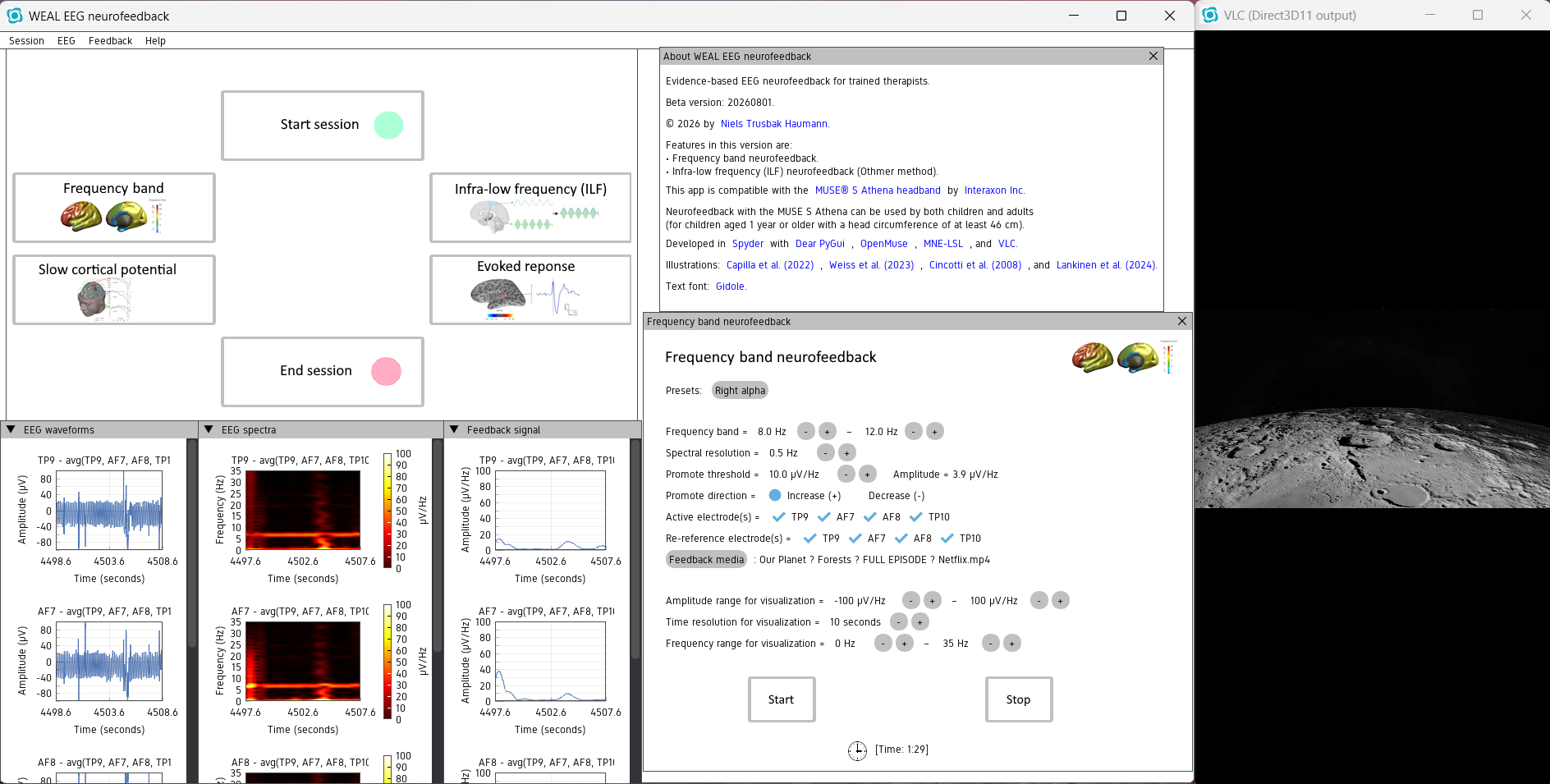

The WEAL platform has been benchmarked and optimized for streaming raw data from commercial EEG hardware (e.g., Muse S), demonstrating the architecture's capacity to process real-time biosignals under the following parameters:

  • Multi-Channel Data Stream: Synchronization of 4 active EEG channels (TP9, AF7, AF8, TP10).
  • Real-Time Signal Processing: Processing a 256 Hz sampling rate with 14-bit resolution per data point.
  • Filtering & Correction: Handling the frequency spectrum from DC to 100 Hz without pre-filtering at the hardware level, placing high demands on the software's native algorithms for noise reduction and artifact correction.

About EEG Neurofeedback

What is the WEAL Software Platform?

What is the WEAL Software Platform?

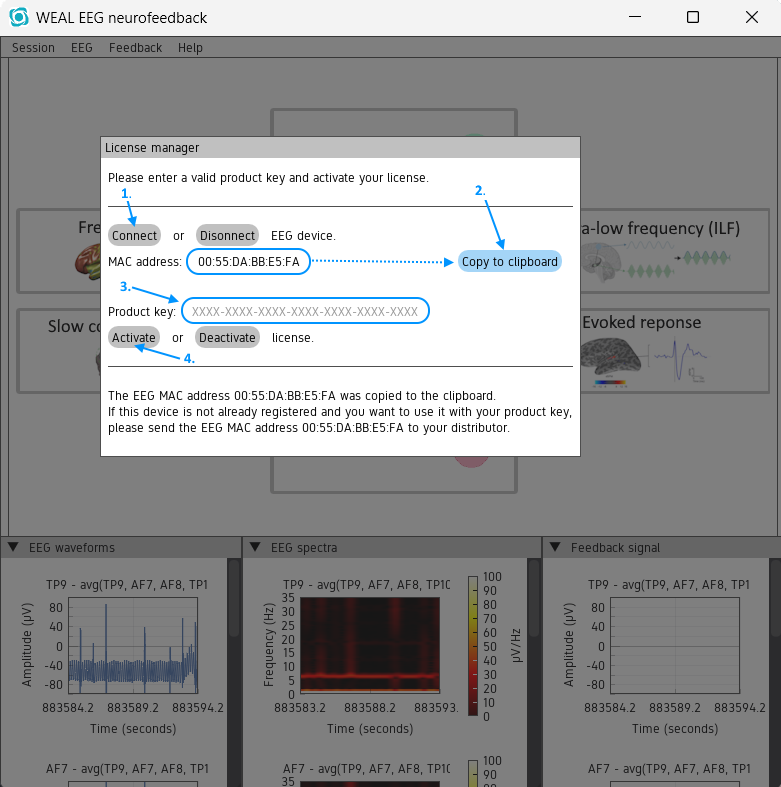

WEAL is a software platform developed for real-time analysis and feedback of electroencephalography (EEG) data and sensory inputs. The name is an acronym for Wireless Electroencephalography and Audio Analytics. The project merges advanced signal processing with neuroscientific research to translate complex brain waves into actionable feedback methods that support mental health and psychological well-being.

About the Developer

The platform was founded and developed by Niels Trusbak Haumann, a researcher and data analyst with extensive experience investigating how the brain processes auditory and sensory stimuli.

Core competencies and academic milestones include:

Contact

Niels Trusbak Haumann

Engskovvej 58A, 8541 Skødstrup

+45 51519664
